Ship Solid Marine Equipment Cylindrical Rubber Fender Boat Bumper
Ship Solid Marine Equipment Cylindrical Rubber Fender Boat Bumper
Ship Solid Marine Equipment Cylindrical Rubber Fender Boat Bumper
Ship Solid Marine Equipment Cylindrical Rubber Fender Boat Bumper
Model
JRBMA-01

Item specifics

brand name
Jerryborg
place of origin
Qingdao,China
color
black
product name
cylindrical rubber fender
material
natural rubber
usage
protect vessels and docks
certificate
BV/PIANC/CCS/ISO9001:2008

Product review

Description

Ship Solid Marine Equipment Cylindrical Rubber Fender Boat Bumper

Cylindrical Rubber Fender

Cylindrical rubber fender is widely used for both large and small vessels due to its feature of progressive load-deflection. Cylindrical rubber fender can be installed on many kinds of structures and attached in horizontal, vertical or diagonal way. And it still performs excellent when fixed on wharf corners. With simple design and easy installation, cylindrical rubber fender becomes a cost effective solution for many applications. Jerryborg supply with various sizes and diameter ratios, which can meet different customers' requirements and conditions.

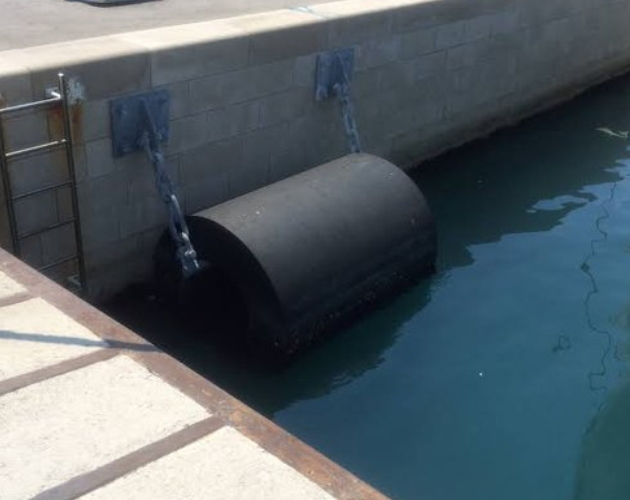

Cylindrical rubber fender with different sizes has several different installation methods. Small cylindrical rubber fenders with 600mm OD typically are usually suspended with chains through the bore connected to brackets or U-anchors each end. Large cylindrical rubber fender of 1600mm OD , is usually suspended using central bars with chain supports at each end connecting back to wall brackets or U-anchors.

Cylindrical Rubber Fender Advantages

1. Multiple installations and easy maintenance

2. Low reaction force,medium surface pressure and reasonable energy absorption

3. Applicable for longitudinal shift and lateral movement of ships while ship at the dock

4. Applicable for different ships and different docks

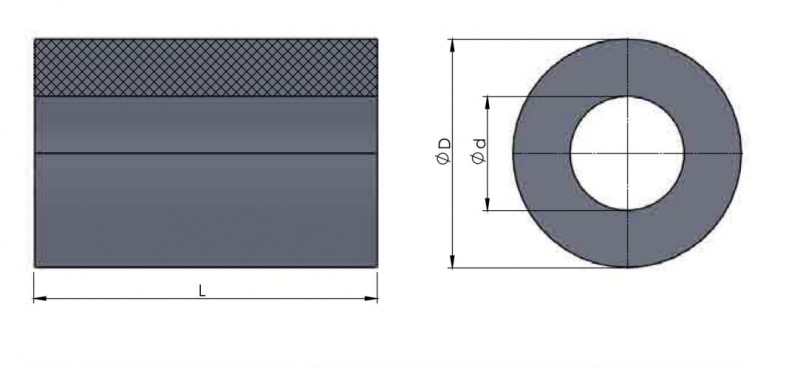

Cylindrical Rubber Fender Structure



Cylindrical Rubber Fender Specification
Spec.
Outer Diameter ΦD
Inner Diameter Φd
Length
Y150
150
75








500-30000
Y200
200
100
Y250
250
125
Y300
300
150
Y350
350
175
Y400
400
200
Y450
450
225
Y500
500
250
Y600
600
300
Y700
700
350
Y800
800
400
Y900
900
450
Y1000
1000
500






1000-20000
Y1100
1100
550
Y1200
1200
600
Y1300
1300
650
Y1400
1400
700
Y1500
1500
750
Y1600
1600
800
Y1800
1800
900
Y2000
2000
1000
unit: mm
