Boat Ship D Type Rubber Fender For Wharf And Dock Bumper
- Model
- JRBMA-01
Item specifics
- material
- natural rubber
- place of origin
- Qingdao,China
- brand name
- Jerryborg
- color
- black
- application
- protect vessels and docks
- material
- natural rubber
- feature
- high energy absorption
Product review
Description
Boat Ship D Type Rubber Fender For Wharf And Dock Bumper
D type rubber fender

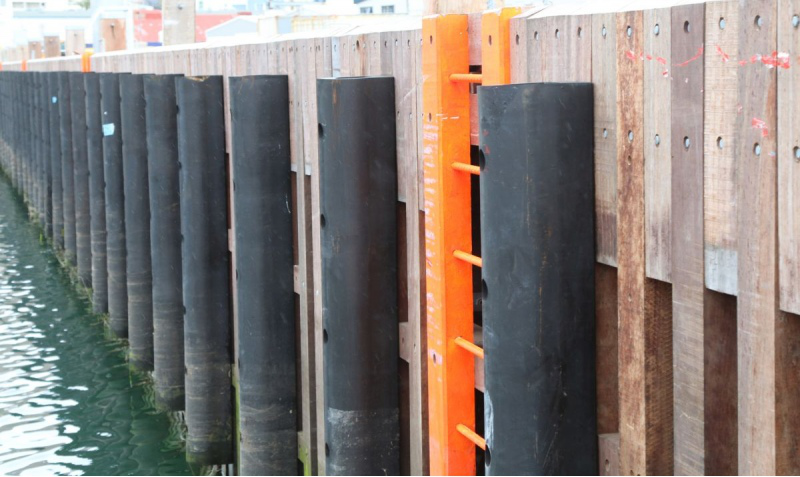

D type rubber fender is manufactured by extrusion, and there are a wide range of dimensions and designs. D type rubber fender with flat back makes it easy for installation on various surface and provide better protection for ships and wharf. Our D type rubber fenders are able to be installed horizontally, vertically or diagonally.It can be used for tugs, work boats, barges and pilot boats as protective fenders against heavy rubbing, brushing and other forces.
1. D fender can be supplied in long lengths with angle cut at the ends, with drilled holes as required for each application
2. Simple installation method
3. Small in size
4. Applicable for small quays, fishing boats, tugs, barges and pontoons.
D Type Rubber Fender Structure
D Type Rubber Fender Specification
|
Item
|
DD100
|
DD150
|
DD200
|
DD250 | DD300 | DD350 | DD400 | DD500 |
|
H
|
100
|
150
|
200
|
250 | 300 | 350 | 400 | 500 |
|
B
|
100
|
150
|
200
|
250 | 300 | 350 | 400 | 500 |
D(Φ) | 45 | 55 | 55 | 65 | 65 | 85 | 85 | 97 |
|
d
|
25
|
27
|
30
|
32 | 36 | 40 | 42 | 45 |
Bolt Size | M22 | M24 | M26 | M27 | M30 | M36 | M38 | M42 |
Q | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 |
P | 350-440 | 350-440 | 325-600 | 325-450 | 325-600 | 325-600 | 350-600 | 400-620 |
Reaction Force (KN/m) | 77 | 115 | 153 | 191 | 230 | 268 | 306 | 383 |
Energy Absorption(KN-M/m) | 1.4 | 3.2 | 5.7 | 8.9 | 12.9 | 17.6 | 23.0 | 35.9 |
Deflection | 50% | |||||||
Reference Weight (kg/m) | 10 | 22 | 38 | 59 | 84 | 115 | 150 | 234 |
unit: mm
