Marine ME Elements Rubber Fender For Jetty Dock
- Model
- JRBMA-01
Item specifics
- product name
- ME Elements Rubber Fender
- place of origin
- Qingdao, China
- brand name
- Jerryborg
- color
- black
- material
- natural rubber
- size
- customized
- application
- vessel and dock protection
- standard
- CCS, ABS, BV, etc
Product review
Description
Marine ME Elements Rubber Fender For Jetty Dock
ME elements rubber fender is widely used for large vessel berthing with its strong longitudinal shear force and high performance. Jerryborg offers variety of sizes for customers to choose.
ME Elements Rubber Fender Features
1. Low reaction force and high energy absorption
2. Optimum performance can be achieved at perpendicular or angular compression
3. The fenders can be combined into different types and sizes of fender system for required performance
4. adapt to different slant compression requirements

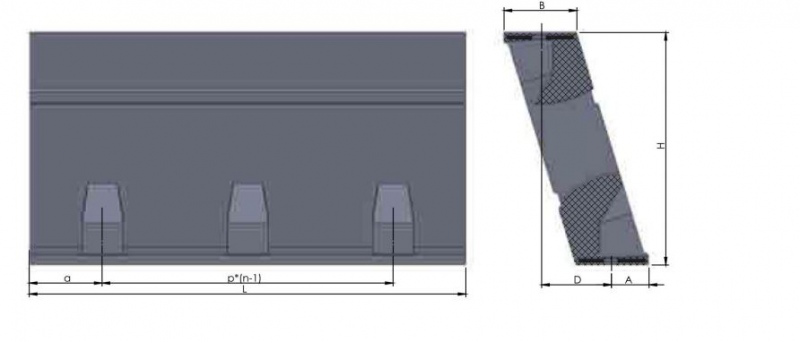

ME Elements Rubber Fender Structure
ME Elements Rubber Fender specification
sizes | |||||||||
H | A | B | D | L | a | p | n | Md | |
ME300 | 300 | 47 | 94 | 94 | 2000 | 250 | 500 | 4 | M20 |
ME400 | 400 | 63 | 125 | 124 | 2000 | 250 | 500 | 4 | M24 |
ME500 | 500 | 87 | 158 | 142 | 2000 | 250 | 500 | 4 | M30 |
ME550 | 550 | 87 | 172 | 170 | 2000 | 250 | 500 | 4 | M30 |
ME600 | 600 | 87 | 188 | 199 | 2000 | 250 | 500 | 4 | M30 |
ME750 | 750 | 118 | 235 | 230 | 2000 | 250 | 500 | 4 | M36 |
ME800 | 800 | 129 | 250 | 240 | 2000 | 250 | 500 | 4 | M36 |
ME1000 | 1000 | 162 | 322 | 310 | 2000 |
250
|
500
|
4
|
M42
|
ME1250 | 1250 | 202 | 401 | 388 | 2000 |
250
|
500
|
4
|
M48
|
ME1450 | 1450 | 228 | 454 | 454 | 2000 |
250
|
500
|
4
|
M48
|
ME1600 | 1600 | 257 | 500 | 480 | 2000 |
250
|
500
|
4
|
M56
|
unit: mm
