Marine Ladder Rubber Fender For Pier Protection
Marine Ladder Rubber Fender For Pier Protection
Marine Ladder Rubber Fender For Pier Protection
Marine Ladder Rubber Fender For Pier Protection
Model
JRBMA-01

Item specifics

material
natural rubber
color
black
product name
ladder rubber fender
brand name
Jerryborg
place of origin
Qingdao,China
size
customized
application
protect vessel and jetty
warranty
24 month
certificate
BV, CCS, ABS, LR

Product review

Description

Marine Ladder Rubber Fender For Pier Protection

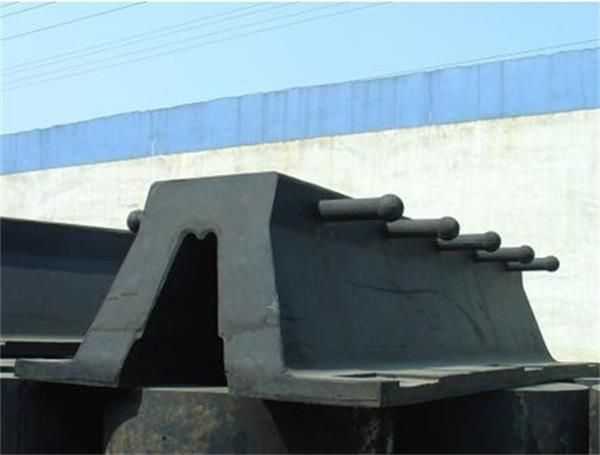

Ladder Rubber Fender

Ladder rubber fender is very robust, it can help protect the wharf from the damage of small craft berthing. Due to its excellent performance of corrosion resistance, it can withstand most accidental impacts from small vessels. Usually, this ladder rubber fender is installed vertically on the quay wall. It's reliable and easy to install.

Ladder rubber fender is widely installed on the wharf to provide protection for vessels and docks. It can reduce the impact strength upon the ship alongside due to its high energy absorption so that it can better protect the structure of vessel and wharf.

Ladder Rubber Fender Features

1. Ladder rubber fender is designed on the basis of super arch rubber fender, adding handrails on the both sides of arch fender.

2. Ladder rubber fender usually is vertical installed on the side of docks.

3. Suitable for berthing of small vessel in the dock.

4. Double functions of ladder and fender.

5. Simple installation and maintenance.

6. Long service life.

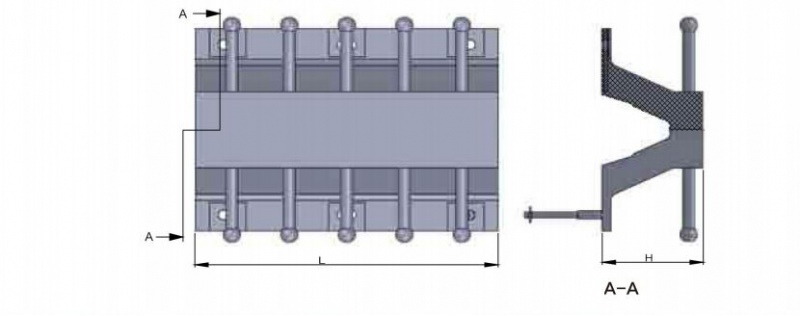

Ladder Rubber Fender Structure


Ladder Rubber Fender Specification

Spec.
Height-H (mm)
Length-L (mm)
H200
200
900
1200
1500
1800
2100
2400
2700
3000
H250
250
900
1200
1500
1800
2100
2400
2700
3000
H300
300
900
1200
1500
1800
2100
2400
2700
3000
H400
400
900
1200
1500
1800
2100
2400
2700
3000
