EVA Donut Fender Marine Floating Polyurethane Foam Fender
- Model
- JRBMA-01
Item specifics
- Brand name
- Jerryborg
- Material
- EVA
- Color
- black,red,orange,yellow,etc
- Size
- customized
- Usage
- ships guidance and protection
- Certificate
- BV/CCS/ABS
- MOQ
- 1 pcs
- Warranty
- 24 months
Product review
Description
EVA Donut Fender Marine Floating Polyurethane Foam Fender

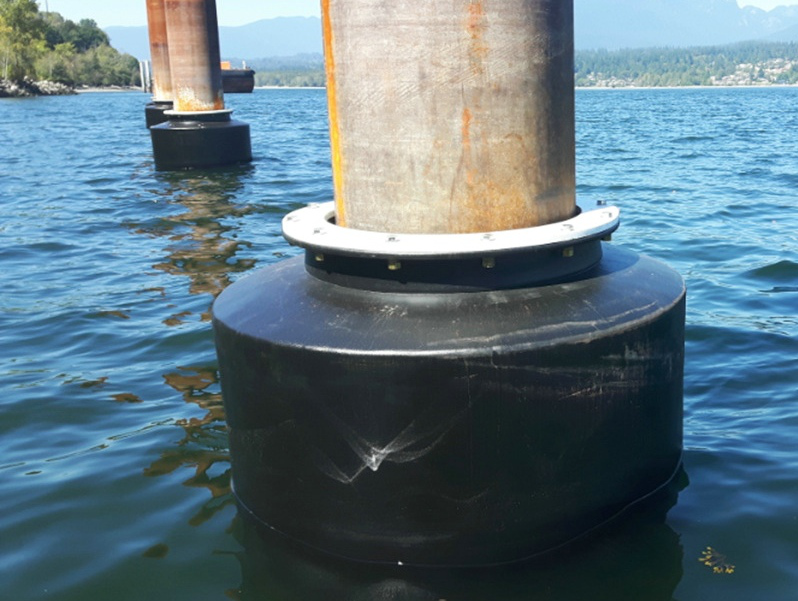

EVA Donut Fender
structures, approach channels and breasting dolphins. EVA donut fender
shares the same material with foam fender, it's composed of 100% closed
cell polyethylene foam core, reinforced elastomeric surface and inner pads
with low friction. One difference is the structure that EVA donut fender can
rotate up and down with the tides, and it is designed with buoyancy which
enable to float above the water line. It's unsinkable and can guide the ships
and vessels , besides it's easy to install and maintain.
The installation of EVA donut fender is very simple. All we have to do is to deliver the fenders to the site and lift over and lower them onto the fender
pile. We don't need to ballast or trim the fenders cause they'll float at the level that is already designed. The last step is to place the capping part over the
top of the fender pile. Jerryborg offer the EVA donut fenders with various sizes and colors with a long lifespan, besides they're easy to maintain and cost-
effective.
1. Low shear force
2. Low maintenance cost
3. Easy and rapid installation
4. Adapt to the water levels
5. Changeable drafts with counterweight
6. Proportional load deflection curve
7. Rotate around a pile
8. Low hull pressure
9. High energy absorption
EVA donut fender is widely used in the places like turning structures, lock entrances, approach channels and dolphins.
1. Dry dock entrance protection
2. Places where tides vary largely
3. Other pile structure
4. Corner protection
5. Bridge protection
6. Jetty protection
1. Outer polyurethane surface with UV resistance
2. Inner galvanized or painted steel tube
3. 100% closed cell polyethylene foam core
4. Bearing pads with low friction
EVA Donut Fender Specification
|
|
|
Standard capacity (at 60% deflection)
|
||
|
Energy absorption(kNm)
|
Reaction force (kN)
|
|||
|
500
|
1000 |
3000
|
14.7
|
224.6
|
|
600
|
1200 |
2000
|
13.7
|
179.5
|
600 | 1200 | 3000 | 21.5 | 269.5 |
900 | 1800 | 1000 | 15.7 | 135.3 |
900 | 1800 | 2000 | 32.3 | 269.7 |
900 | 1800 | 3000 | 48 | 405.1 |
1250 | 2500 | 2000 | 61.8 | 374.7 |
1250 | 2500 | 3000 | 92.2 | 562.1 |
1250 | 2500 | 4000 | 123.6 | 750.4 |
1500 | 3000 | 2000 | 89.2 | 450.2 |
1500 | 3000 | 3000 | 133.4 | 674.9 |
1500 | 3000 | 4000 | 177.5 | 899.7 |
2000 | 4000 | 2000 | 157.9 | 600.3 |
2000 | 4000 | 3000 | 236.4 | 899.5 |
2000 | 4000 | 4000 | 315.8 | 1199.7 |
