Low Maintenance Donut Fender For Pillar and Dock
- Model
- JRBMA-01
Item specifics
- material
- eva,polyurethane
- usage
- protect and guide ships
- color
- red, orange, black, etc
- size
- customized size
- certificate
- BV, CCS, ABS
- port
- Qingdao port
- packing
- nude packing
- application
- pillar, dock
Product review
Description
Low Maintenance Donut Fender For Pillar and Dock

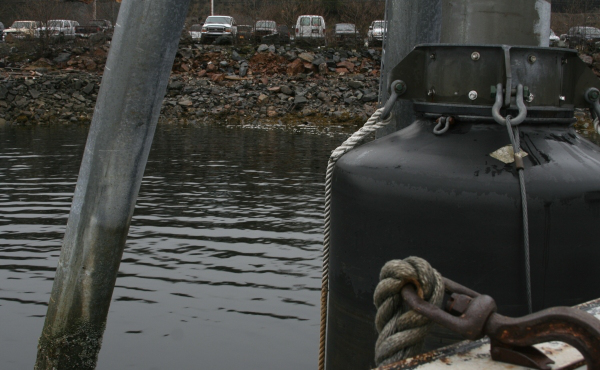

Donut Fender
Donut fender is designed with a 100% closed cell polyethylene foam core
and reinforced elastomeric skin. One of the main features is that these
donut fenders can rise and down with the tide adaptation and rotate
around the fender pile along with guiding ships. They're unsinkable and
easy to install.
Jerryborg donut fenders are installed over monopiles and used for port and
dock entrances and bridge protection with high energy absorption. There
are various sizes and colors for customer to choose to meet different
applications.
Donut Fender Application
1. Bridge protection
2. Corner protection
3. Lock entrance protection
4. Turning dolphin
5. Dock defense where tides vary greatly
6. Ferry vessel protection and guidance
1. Cost-effective maintenance
2. Easy installation and maintenance
3. Low installation cost
4. Tide adaptation
5. Various colors are available
|
|
|
standard capacity (at 60% deflection）
|
||
|
energy absorption (kNm)
|
reaction force (kN)
|
|||
|
500
|
1000 |
3000
|
14.7
|
224.6
|
600 | 1200 | 2000 | 13.7 | 179.5 |
600 | 1200 | 3000 | 21.5 | 269.6 |
900 | 1800 | 1000 | 15.7 | 135.3 |
900 | 1800 | 2000 | 32.3 | 269.7 |
900 | 1800 | 3000 | 48 | 405.1 |
1250 | 2500 | 2000 | 61.8 | 374.7 |
1250 | 2500 | 3000 | 92.2 | 562.1 |
1250 | 2500 | 4000 | 123.6 | 750.4 |
1500 | 3000 | 2000 | 89.2 | 450.2 |
1500 | 3000 | 3000 | 133.4 | 674.9 |
1500 | 3000 | 4000 | 177.5 | 899.7 |
2000 | 4000 | 2000 | 157.9 | 600.3 |
2000 | 4000 | 3000 | 236.4 | 899.5 |
2000 | 4000 | 4000 | 315.8 | 1199.7 |
