Cylindrical EVA Donut Fender With Polyurethane Skin
Cylindrical EVA Donut Fender With Polyurethane Skin
Cylindrical EVA Donut Fender With Polyurethane Skin
Cylindrical EVA Donut Fender With Polyurethane Skin
Model
JRBMA-01

Item specifics

material
eva,polyurethane
usage
protect and guide ships
color
red, orange, black, etc
certificate
BV, CCS, ABS
warranty
12 months
port
Qingdao port
packing
nude packing

Product review

Description

Cylindrical EVA Donut Fender With Polyurethane Skin

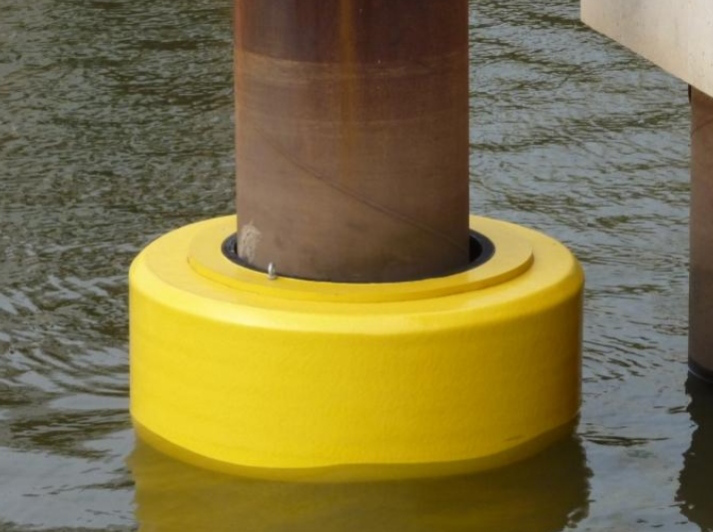

EVA Donut Fender

EVA donut fender is designed for guiding and protecting vessels and

structure due to its excellent performance of floating up and down with the

tide. It is composed of closed cell EVA foam and polyurethane spray skin.

EVA donut fender is usually installed over monopiles and rotate up and

down with tides helping guiding the vessels and ships.

EVA donut fender is commonly used for simple berthing dolphins, and it

can guide the ships and also protect the ships. Donut fender can float up

and down with the water line. The inner casing is wear-resistant with low-

friction bearings. Besides, the eva donut fender is unsinkable and durable.

EVA Donut Fender Installation

The installation of donut fender is very simple. All we have to do is to deliver the fenders to the site and lift over and lower them onto the fender pile. We

don't need to ballast or trim the fenders cause they'll float at the level that is already designed. The last step is to place the capping part over the top of

the fender pile. Jerryborg offers the donut fenders with various sizes and colors with a long lifespan, besides they're cost-effective and easy to maintain.

Donut Fender Application

1. Bridge protection

2. Corner protection

3. Lock entrance protection

4. Turning dolphin

5. Dock defense where tides vary greatly

6. Ferry vessel protection and guidance

Donut Fender Features

1. Cost-effective maintenance

2. Low installation cost

3. Various colors are available

4. Low shear force

5. Easy installation and maintenance

6. Adapt to the tides

Donut Fender Specification


pile diameter (mm)

outer diameter (mm)

overall length (mm)
standard capacity (at 60% deflection)
energy absorption (kNm)
reaction force (kN)
500
1000
3000
14.7
224.6
600
1200
2000
13.7
179.5
600
1200
3000
21.5
269.6
900
1800
1000
15.7
135.3
900
1800
2000
32.3
269.7
900
1800
3000
48
405.1
1250
2500
2000
61.8
374.7
1250
2500
3000
92.2
562.1
1250
2500
4000
123.6
750.4
1500
3000
2000
89.2
450.2
1500
3000
3000
133.4
674.9
1500
3000
4000
177.5
899.7
2000
4000
2000
157.9
600.3
2000
4000
3000
236.4
899.5
2000
4000
4000
315.8
1199.7
